Hi
offset is working different if I use cad tools shown on the left side og the screen.
I have also the tool on the upper site og the screen and this works differently.
Can you perhaps explain?
I use Mac M2
Offset with distance.dxf (98.7 KB)
Hi, and welcome to the QCAD forum.
Presumably one tool is called Offset (With Distance) (OF) and the other Parallel (With Distance) (LP)
LP is a line tool, OF is a modification tool.
Same button icon but they differ indeed.
Remark that LP can do the same as AC or CC and vice versa.
Except the option for rays or endless lines.
Typically supporting: Line, Arcs, Circles and Ellipses.
Then OF or OQ are typically intended for polylines but supports other types as segment or as a chain of connected line-art.
In the Misc section there is yet another polyline tool with the same button icon as OQ.
Regards,
CVH
Please post a screenshot if possible, so we can see which exact tools you are referring to.
You can very likely simply stick to the Modify > Offset tool as it offsets single entities as well as whole contours. Please refer also to our tutorial about that offset tool at:
Dear CVH
thanks a lot for fast answer. Its a wonderful drawing system for our busing in house drawing.
I send you 3 screenshot trying to explain it depent of which tool you use.
Upper figure I use the rolling menu
Middle figure I use the tool in the upper line
Bottom figure I use the tool on the links site
Its no problem for me now I had found the funktion depend of where you pick up the tool.
Best reagards Svend
Offset v2.docx (538 KB)
offset v1.docx (1.31 MB)
Hi,
It doesn’t depend on where you pick a certain tool.
Almost all QCAD tools are listed in various locations.
- Under the menus and their sub-menus
- On a dedicated Toolbar
- On the CAD Toolbar
- In the Tool Matrix widget
Toolbars and Widgets visibility can be toggled, the location of Toolbars can be rearranged, the content of various listings can be altered.
You can thus fully customize the appearance of your QCAD GUI.
It really just depends on what category of tools they belong to.
The Line tool Parallel (with Distance) (LP) and the modification tool Offset (with Distance) (OF) have an identical button icon.
The tool tip when you wait a while before clicking and the functionality is different.
Same goes for the Line tool Parallel (through Point) (LG) and the modification tool Offset (through Point) (OH)

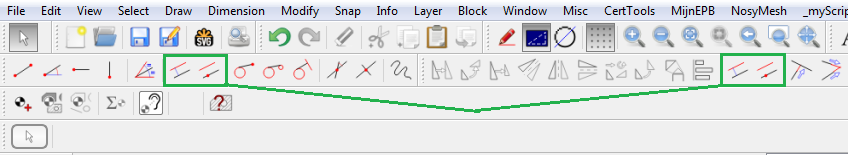

You can compare both the icons side by side in my screen capture.
Second row on the left is the Line Toolbar followed by the Modify Toolbar.
Regards,
CVH
