Nesting not done. It scaters

QCAD Professional QCAD/CAM
1

Hi Team i am using Q Cad Nesting for solidworks part,
When i do nesting some parts are broken,

Here I have attached my file for your reference.

Cutting Plan.dxf (462.5 KB)

Version:
3.32.9.0 (3.32.9)
Internet:

Build Date:
May 8 2026
Revision:
c97656e
Qt Version:
6.11.0
Architecture:
x86_64
Compiler:
MSVC++ 14.44 (2022)

My system spec is

Device name DESKTOP-3DRQGKQ
Processor 11th Gen Intel(R) Core™ i7-1165G7 @ 2.80GHz (2.80 GHz)
Installed RAM 16.0 GB (15.7 GB usable)
Graphics card NVIDIA T500 (4 GB)
Intel(R) Iris(R) Xe Graphics (128 MB)
Storage 213 GB of 477 GB used
Device ID D337F56B-2D76-4233-B5FE-E3A6A2EE9B25
Product ID 00355-60713-94383-AAOEM
System type 64-bit operating system, x64-based processor
Pen and touch No pen or touch input is available for this display

2

For such parts with many inner, dependent entities that are touching (perhaps even slightly intersecting) the outermost contours, I would recommend to convert at least the outermost contour of each part to a polyline (Right-click > Auto Create Polyline).

cutting_plan_nesting

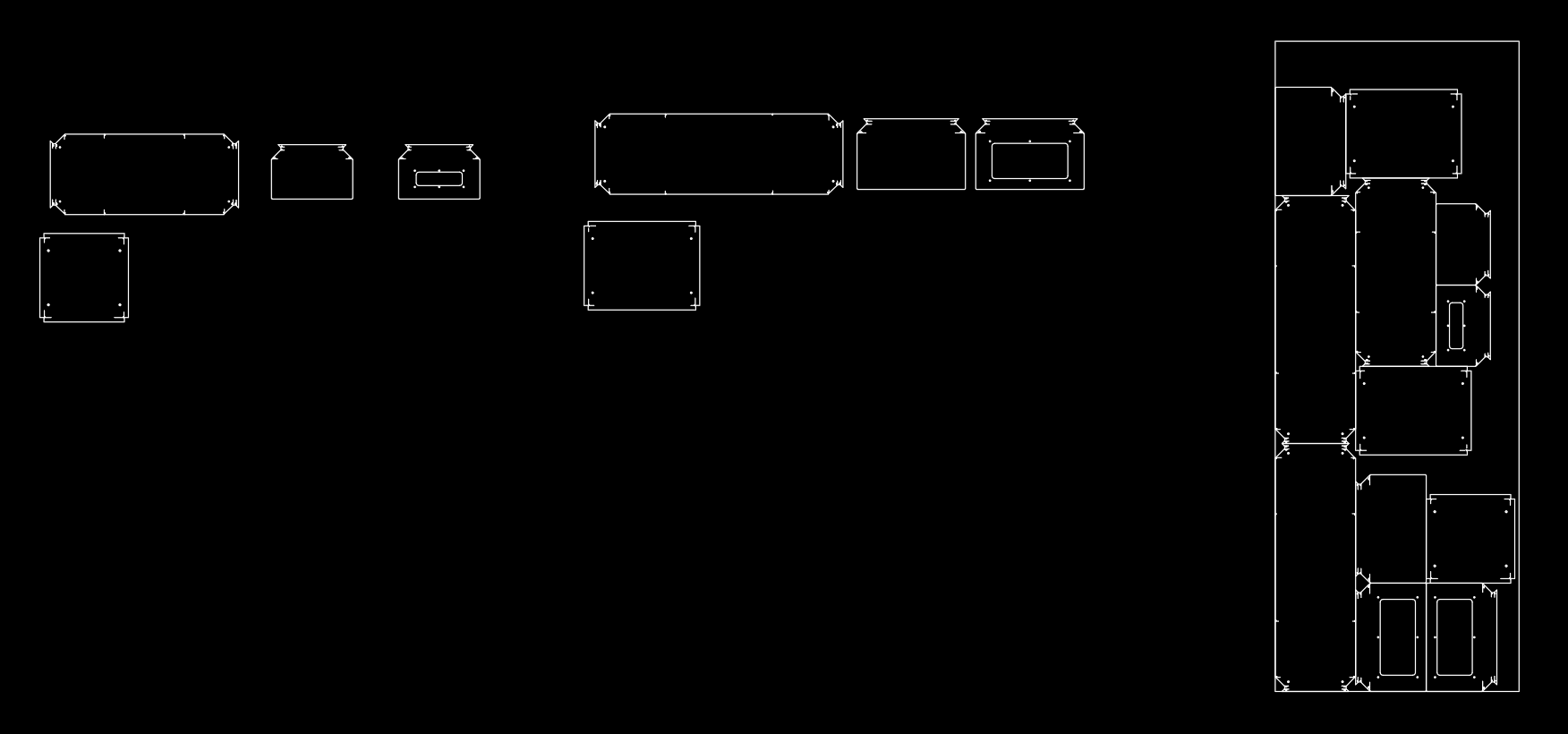

cutting_plan_nesting1752×820 14.2 KB

Cutting Plan_pl.dxf (351.4 KB)
