Is there a way to get the area of a hatch?

QCAD Professional QCAD 'How Do I' Questions
1

Friends, on my projects I always need to insert the weight of the parts in the parts list.

I work with QCAD at my part time job at my home.

If I have a piece with a lot of holes or a complex geometry, the way I’m used to get the area in my main job software (AutoCAD) is make a hatch and the area of it and in an excel sheet I insert the area, the depth and get the weight of the part.

Is there a way to get the area of a complex geometry in qcad without need to take the area of every little part and make calculations by hand?

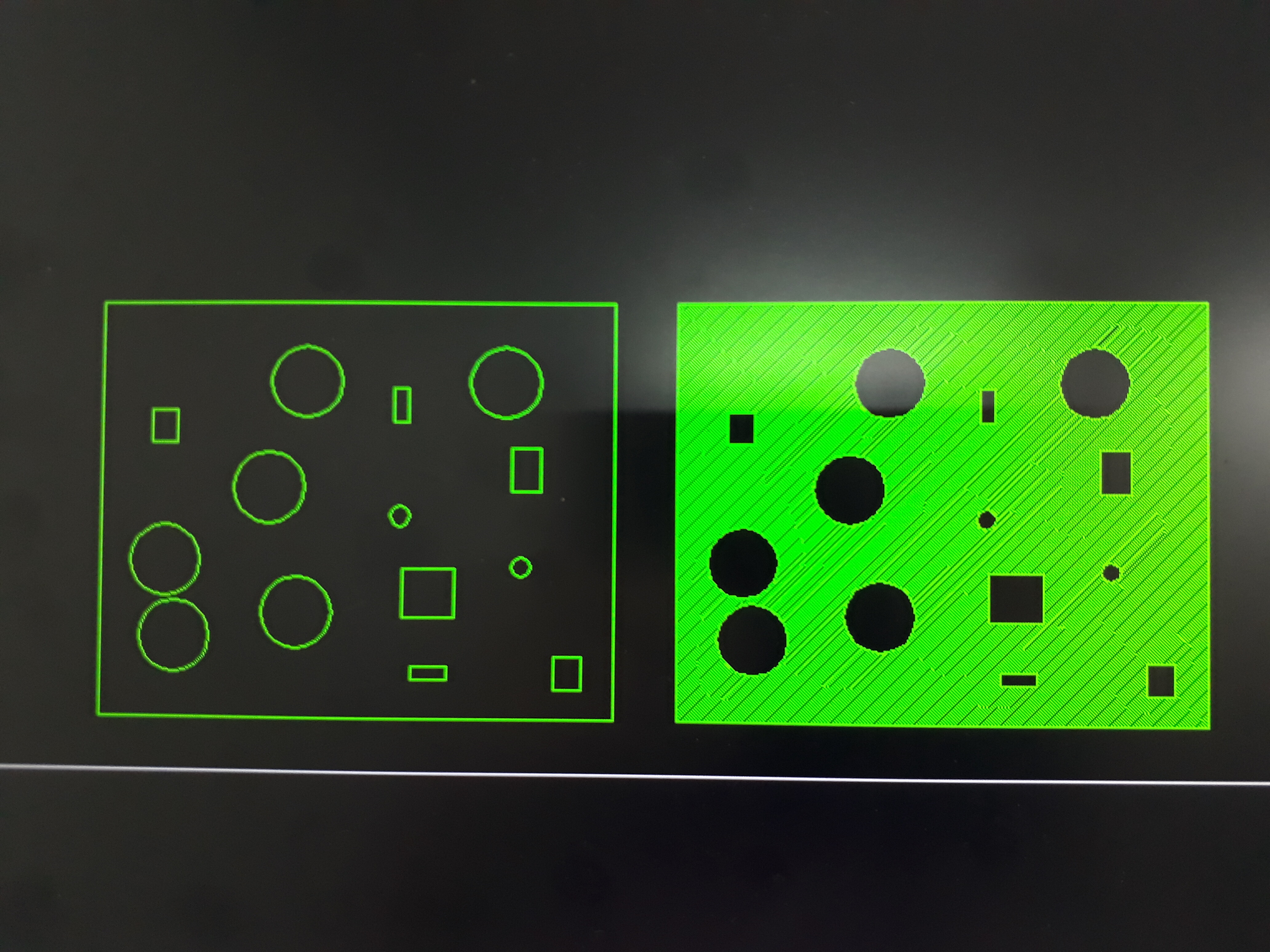

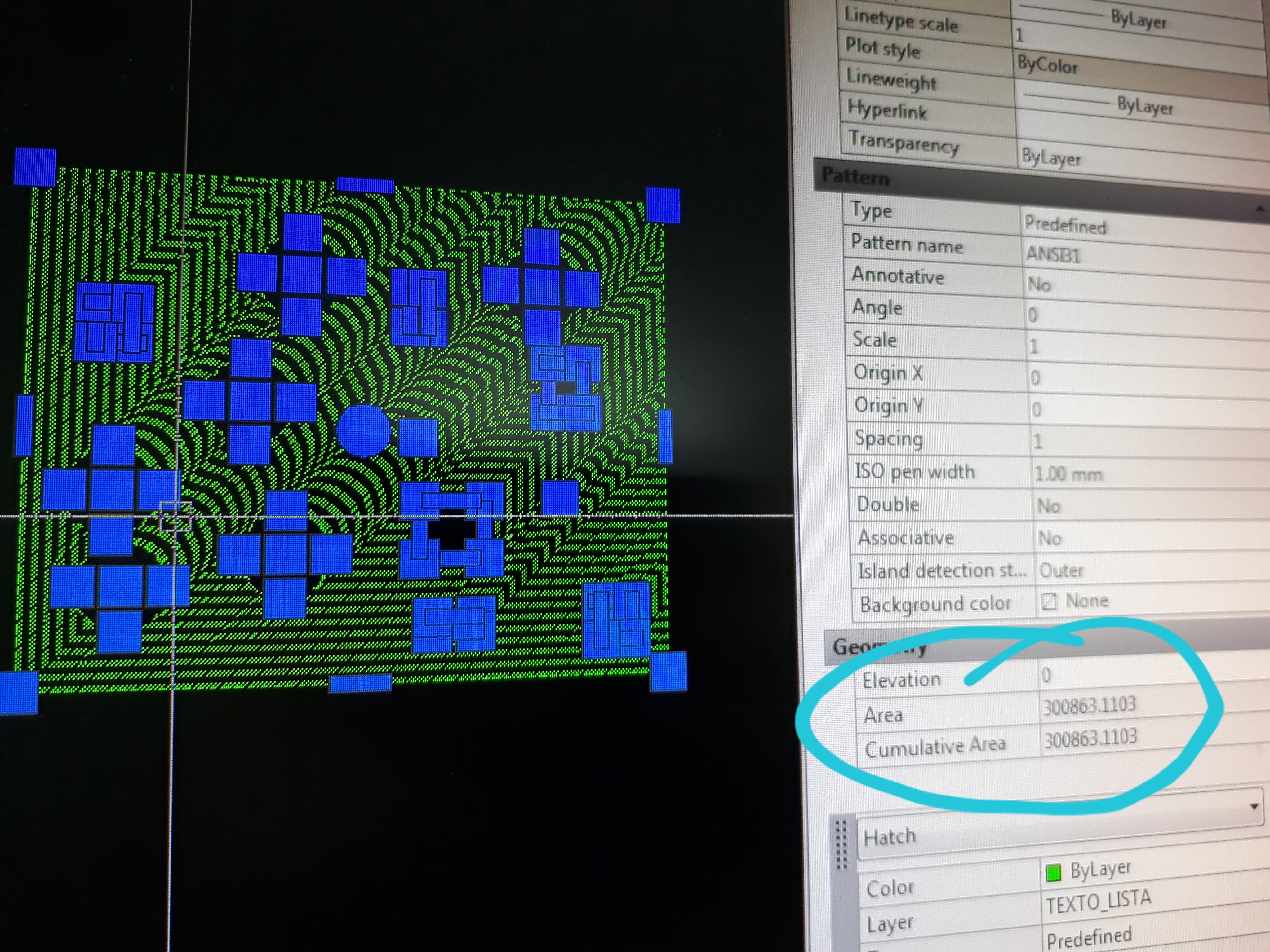

The images show an example of what I’m saying.

20211018_095659.jpg4096×3072 2.67 MB

20211018_095627.jpg4128×3096 2.33 MB

2

I do not believe the area of a hatch is currently a value that is automatically generated or that can easily be generated except with the method you describe where you would subtract the value of each cutout manually. Someone with a little scripting ability could probably automate that. I wish that were something I knew how to do!

3

Please refer to:

Regards,
CVH

4

Please refer to:

Regards,
CVH

5

Thank you so much and congratulations for your great efforts to help the community, CHV!! I’ll test it ASAP.
