DWG Object "Band" also known as "Trace" missing

blumi · July 1, 2014, 9:19am

Hello Board.

I have a little problem. We have a lot of small dwg-drawings
that sould be managed in the future by using QCad.

Unfortunately the used dwg-object “Band”, also known as
“Trace” isn’t displayed in QCad. This object occurs a lot
in the drawings.

Is this object not supported by QCad? Do you have any
plans to support it or will it never be supported?

I added some drawings where the object is used to test
the problem.

It is a important information because if it will not be
supported we can’t buy QCad-Pro.

Thanks for your help and information in advance.

blumi
1013.dwg (83.7 KB)
1010.dwg (41.2 KB)
1005.dwg (34.2 KB)

Clive · July 1, 2014, 9:39am

Hi blumi

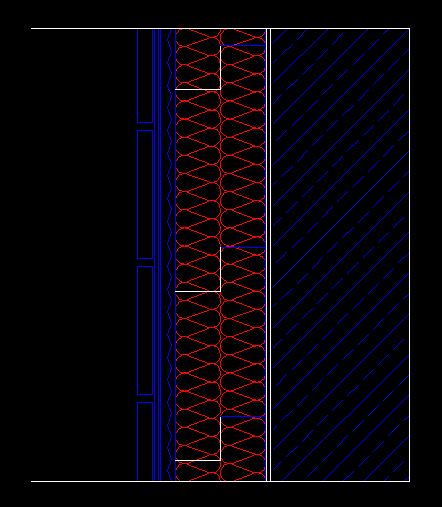

I opened this with latest QCAD pro, is your object ‘Band’ shown here?

blumi · July 1, 2014, 9:44am

Hi Clive,

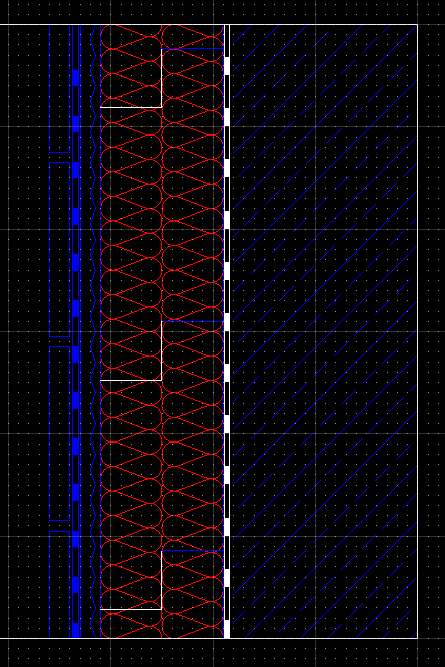

no, unfortunately not. I add a bmp-file where it is shown.
blumi

Clive · July 1, 2014, 10:00am

Not sure what you ‘Band or Trace’ is, what CAD program was used originally?

blumi · July 1, 2014, 10:05am

Hi Clive,

the “Bands” or “Traces” are the small filled rectangles
in the drawing. The dwg was originally created with
Autocad R14.

blumi

andrew · July 1, 2014, 10:08am

Hi blumi,

No, trace entities are not supported at this point. Support for traces might be added in the future. In any case, I’ve added a feature request at:

Clive: a trace entity represents a filled area with four corners. This was originally used to create thick lines with plotters.

Clive · July 1, 2014, 10:11am

Thanks Andrew, always something new to learn

blumi · July 1, 2014, 10:14am

Hi Andrew,
hi Clive,

thanks for your responses.

Trace entities, thats exactly what I meant.

It would be great if the trace entities could be supported.

Thanks anyway.

blumi

andrew · July 2, 2014, 11:27am

Quick update: basic support for trace entities has been added for the next release. This includes loading, saving and simply modifications. This does not include, however, a tool to create new trace entities from scratch.

blumi · July 3, 2014, 2:55pm

Hi Andrew,

so far that sounds great. Maybe the creation of
new traces could be implemented in one of the
next releases after the upcomming release?

This would be great.

Thanks a lot.

Sincerely
blumi
