Dimension value is overlapped when some files viewed by QCAD

General Site Feedback
1

The problem as the subject, the dimension values is shown right when the file open by other software, please see the attachments.
設計圖紙(2).dwg (542 KB)

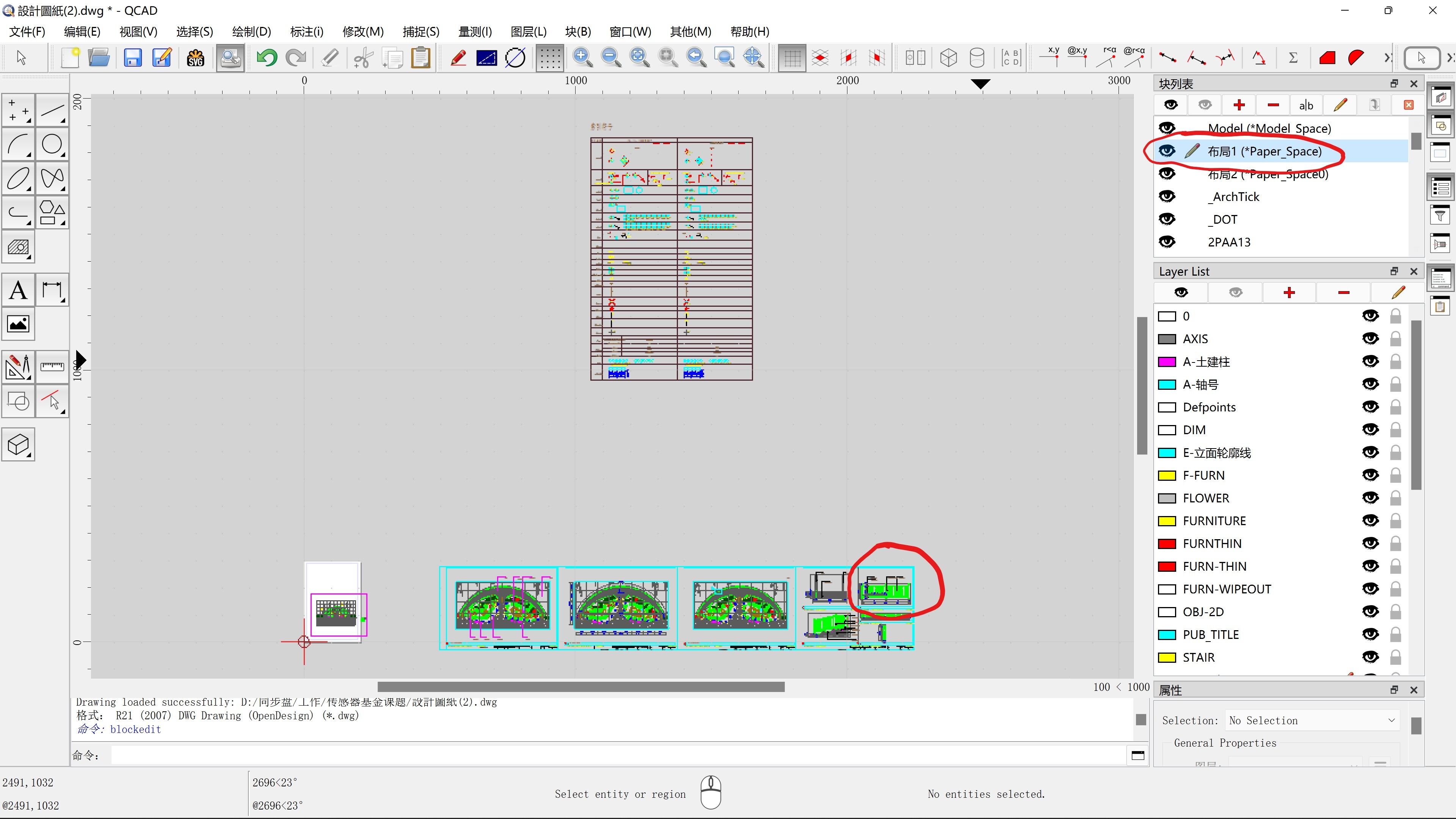

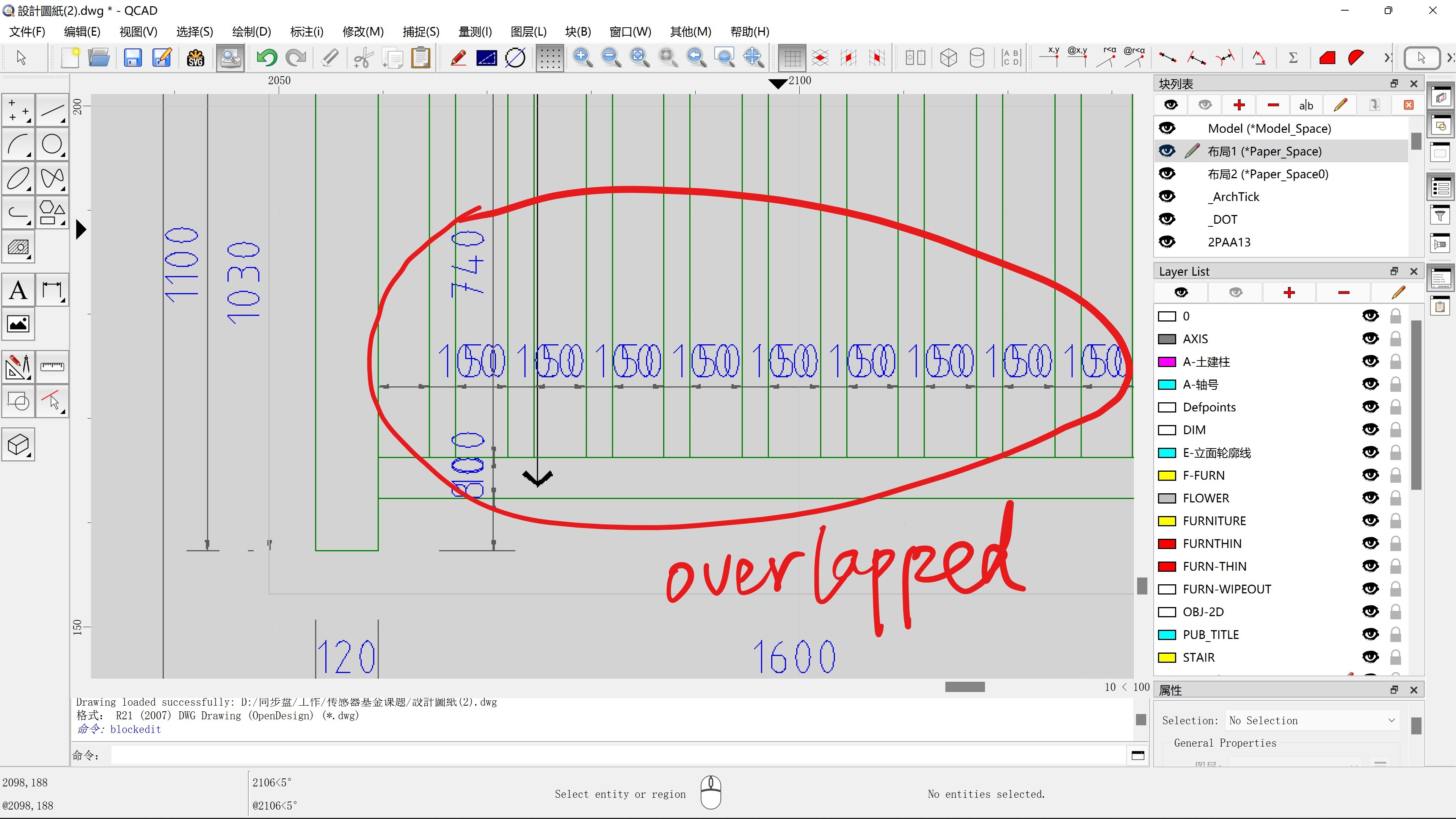

OpenWithQCAD_2.jpg3840×2160 741 KB

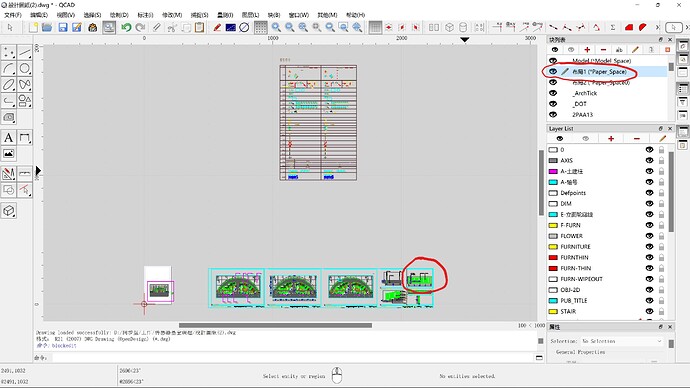

OpenWithQCAD_1.jpg3840×2160 713 KB

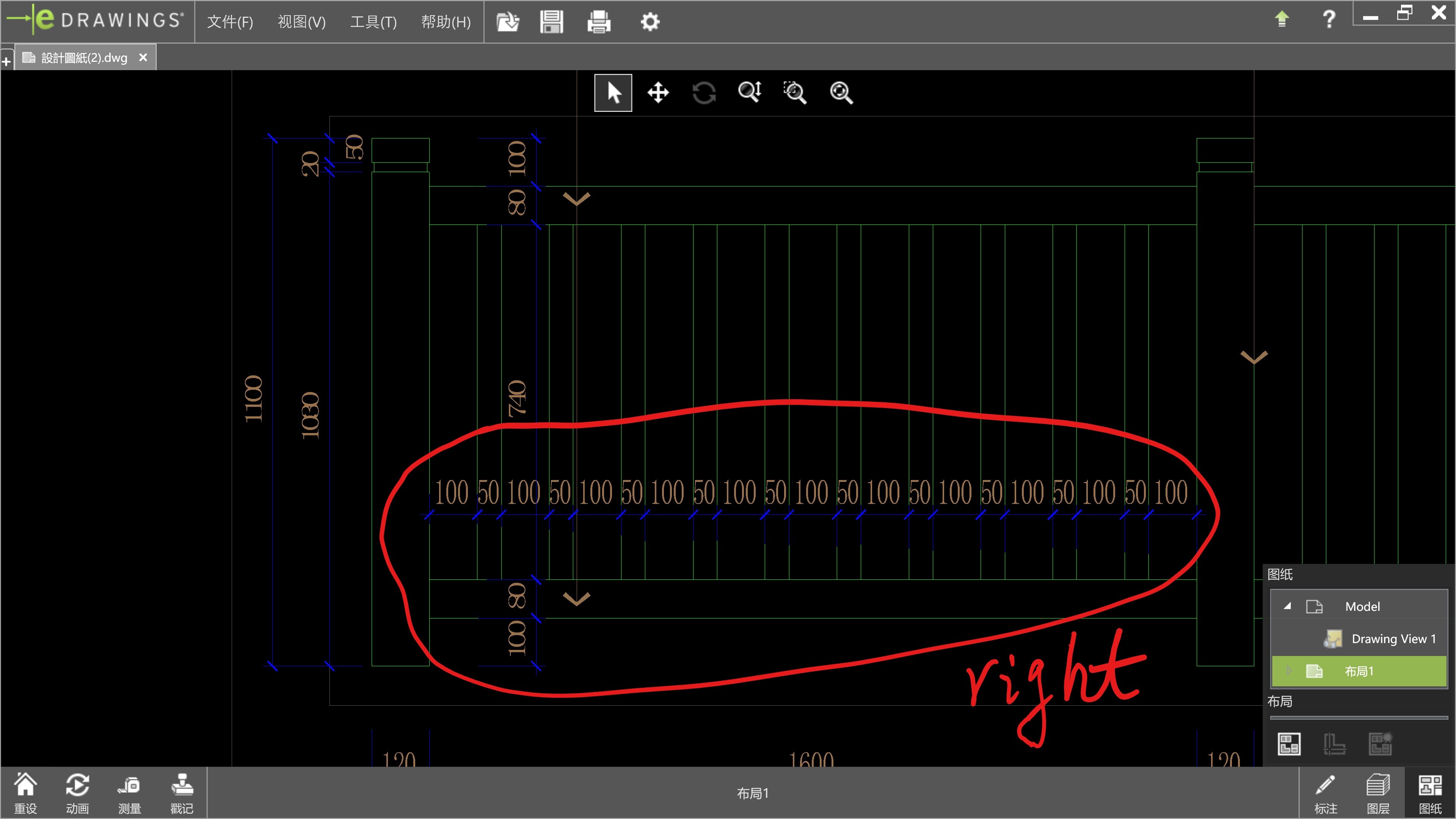

OpenWithEdrawings.jpg3840×2160 447 KB

2

Hi,

QCAD is a 2D program! Your drawing contains 3D entities what leads understandably to unexpected behavior in QCAD.

If you flatten it to 2D (Menu/Misc/Modify), change the Dim settings from Arrow to Tick, reduce the size of the DIM text from 3 to 2.25, remove the double dimensioning then … it will work just fine in QCAD. :wink:
