[solved] Exception occurred. Entity NOT saved:

QCAD Professional QCAD Troubleshooting and Problems
1

Hallo ich kann keine texte mehr speichern!

Versions
QCAD version: 3.19.1.0
Date: Nov 11 2017
Qt version: 5.6.2
Compiler version: Clang 6.0.0
Build Date: Nov 11 2017
Revision: 7cb021aef11c8ce056574d3b415ee66c7c96e10d

Architecture: x86_64
OS: macOS
OS version: macOS 10.13

Was ist da los?
DANKE für die rasche hilfe


Hi I can not save any Text in a drawing! not even in a new one. Allways the exception occured if you save it…

Tanks for helping
Regards Theo Stauffer

2

What is the exact text you are trying to create (contents, fonts, size, etc.)?

3

Hi it does not depends what vou type…

Bretter

Arial 40 Kursiv
source:
\fArial|b0|i0|c0|p0;Bretter

Kommando: new
Kommando: text
Kommando: save
Exception occurred. Entity NOT saved: 38
Zeichnung gespeichert: /Users/ts/Desktop/Parcours-Pläne/test2.dxf
Format: R27 [2013] DXF Drawing [Teigha] (*.dxf)

4

Do you use a drawing as default template when starting a new drawing?
Edit > Application Preferences > File > Templates > Default Template

5

No

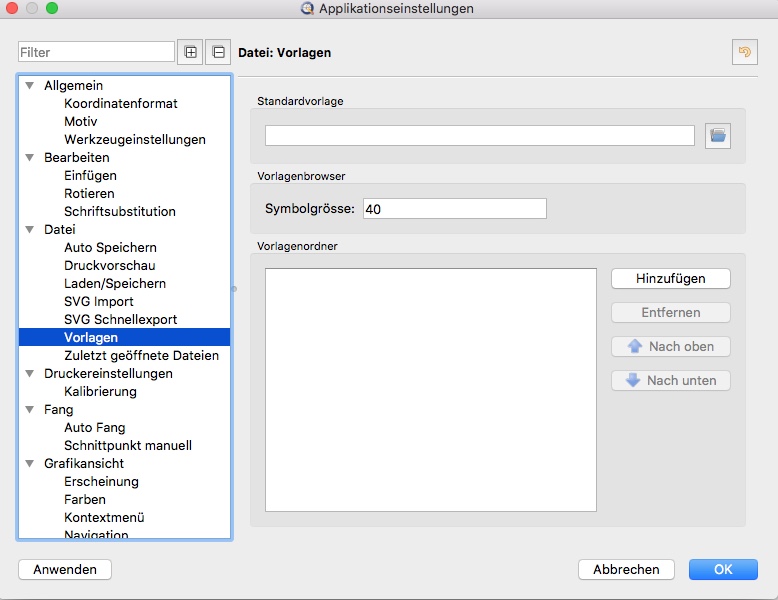

pic-1.jpeg778×600 83 KB

6

Unfortunately, this is not reproducible here. Can you save your file as follows and attach it to your post:

  • File > New
  • Add text
  • File > Save As…
  • Change “Format” at the bottom to “R15 [2000/LT2000] DXF Drawing [dxflib] (*.dxf)”
7

OK here is the file
test.dxf (190 KB)

8

Exception occurred. Entity NOT saved: 1ea
Zeichnung gespeichert: /Users/ts/Downloads/test.dxf
Format: R15 [2000/LT2000] DXF Drawing [Teigha] (*.dxf)

9

Sorry

Speichere mit Dateiformat Version 'R15 [2000/LT2000] DXF Drawing [dxflib] (.dxf)'.
Schwarze Objekte und Layer werden als weiss gespeichert.
Benutzerdefinierte Farben werden auf die nächste verfügbare Farbe ‘gerundet’.
Zeichnung gespeichert: /Users/ts/Downloads/test2.dxf
Format: R15 [2000/LT2000] DXF Drawing [dxflib] (.dxf)
test2.dxf (27.8 KB)

10

if I open the test.dxf no text is in it
if I open the test2.dxf text is in it!!!

Format library ? Teigha problem?
with format dxflib it works..

11

Thanks. I can reproduce the problem now. Please change the line spacing in the text dialog to a value of 4 or under. The DXF standard only allows values up to 4 and Teigha enforces this rule in the latest version which is unfortunate. I will look into ways to allow QCAD to work around that unnecessary limitation.

12

Great, thanks for your help. I tried a lot of settings… but this one not…
Regards Theo
