Text size of dimensions

[Husky]

Hi,

I am having trouble getting the text on dimensions a readable size both in model_space and when laying out for printing in paper_space. I have tried using the scale option when inserting a dimension, it does not seem to change the text size.

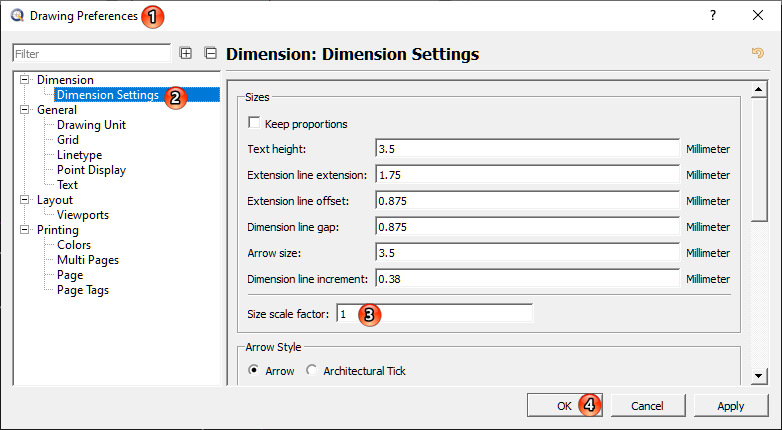

In Drawing Preferences / Dimension settings is a scale option which works for Model_Space and Paper_Space.

…it is readable and correct for the printed but I have to do this for every dimension one at a time.

My suggestion works also in the aftermath.

If I try to change the scale option when inserting the dimension it will change the Linear measurement factor option in the Property editor, which I have no idea what that option controls, and has not effect on the text size.

Correct - that is to scale the measurement value.

I usually print multiple drawing sheets as different scales when printing a set of drawings.

Depending on your drawing - it could be easier to handle different scales if you do all dimension in Paper_Space …
